A Matrix Switching Double Pedalboard System with almost infinite tone possibilities.
The audio matrix can store 120 different signal routings with 3 millisecond switching time between routings. The Eventide TimeFactor stores 100 different delay presets. The 2x Eventide H9's can host 99 presets per unit from across the Eventide algorithm collection with the TC Electronic Nova Drive providing 18 different OD's & Distortions. With a system like this, the only limitations on sonic possibilities are the player's creativity.

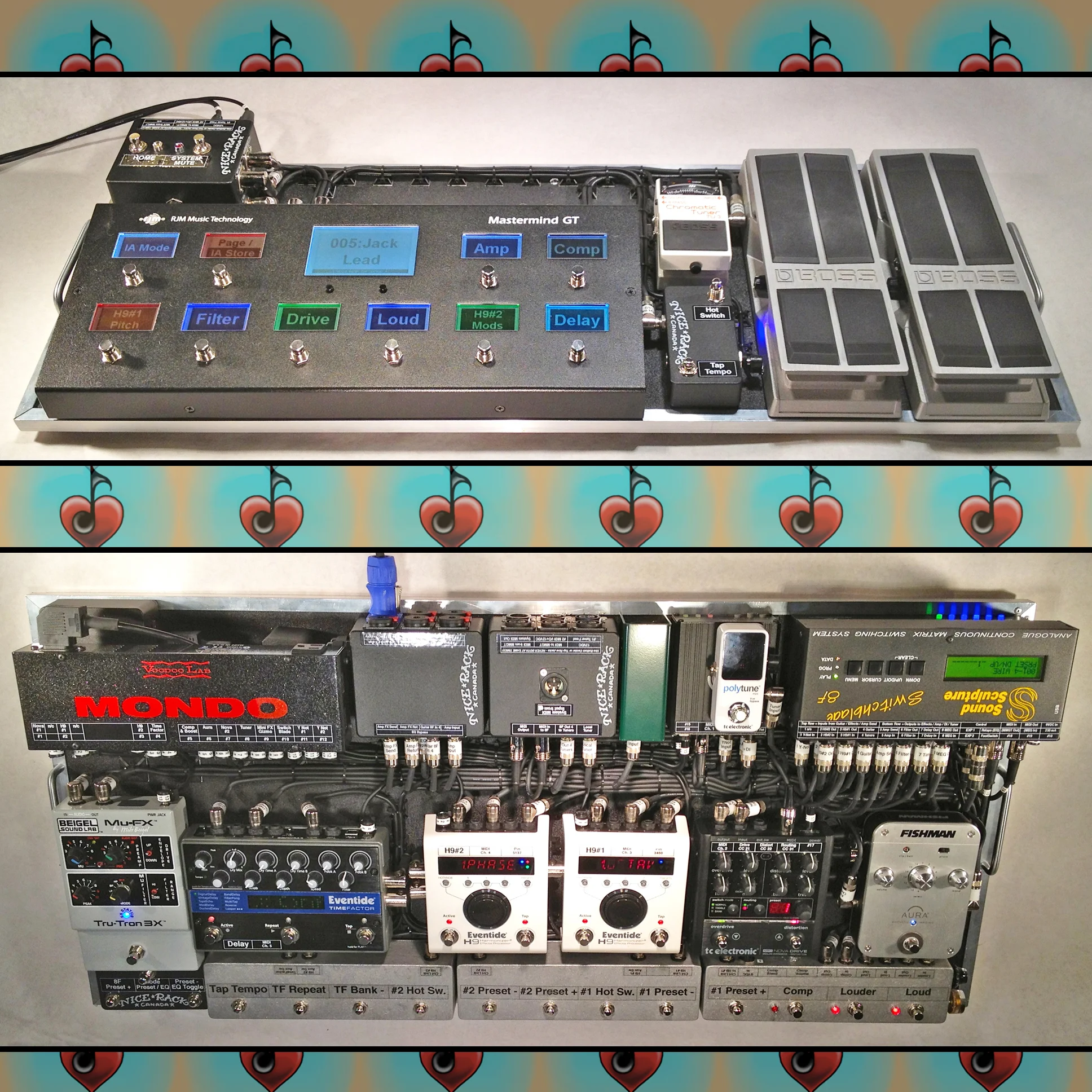

The onstage controller board features the almost limitless RJM Music MasterMind GT-10 with 2x Boss Effects Pedals FV500L Expression Pedals.
The offstage effects board routing is dynamically switched per preset by a Sound Sculpture 8F Matrix with an RJM Music Mini Effect Gizmo & Y Not slaved to the matrix for further switching duties.
Effects are 2x Eventide H9's + 1x Time Factor, 1x TC Electronic Nova Drive, 1x Mu-FX TruTron, 1x Fishman Aura, 1x Xotic SP Compressor.
Powered by Voodoo Lab Pedal Power Mondo.
The client had a unique request for the design, the layout and ergonomics had to serve manual articulation due to accommodate occasional use of the effects board without a MIDI controller.
To facilitate this request, we built "Aux Switch" controllers for the Eventide effects pedals, and a footswitch to toggle through presets in the 8F.
System Design, Fabrication & Programming by Nice Rack Canada.
